P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection
Products Feature
(1) Interactive Floor and Touch module, The module is equipped with sensors and corresponding IC. Make the video more humanize.
(2) Cabinet Size: 500mm*500mm. Fast locks design, cabinets can be easily assemblied in 7 seconds.
(3) Acrylic Waterproof Interactive Dance Floor led screen.
(4) Strong bearing capacity. Strong and dearable Aluminum Cabinet,highly load earable
(5) Professional cooling channel design, to ensure that the screen body heat export quickly and efficiently, make product performance is not affected by heat .
Parameter
| | Floor LED Screen |
| Physical Pitch | 3.91mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 65,536 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64/64*168 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 |
| Single Cabinet Weight | 7/13kg/panel |
| Average Power Consumption | 60/120W/panel |
| Max Power Consumption | 110/400W/panel |
| Brightness | 900-1200 nits |
| Viewing Angle | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Refresh Rate | >1,920 Hz |
Pruduct details
The Installation Procedure of Dance Floor LED Screen.
High refresh rate

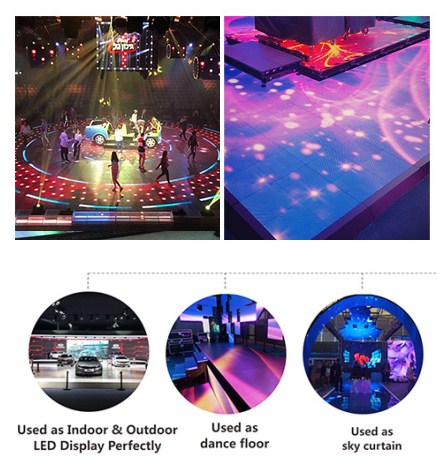

Widely use
Widely use Stage rental, shopping mall, DJ touring, Weding, car show, fashion store, house of worship,night club and so on.
Packing
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products w
ith good service for our clients;
FAQ
1. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
2. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
3. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
